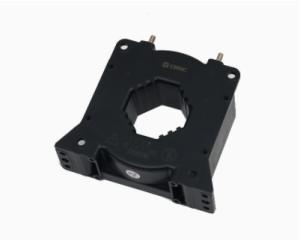

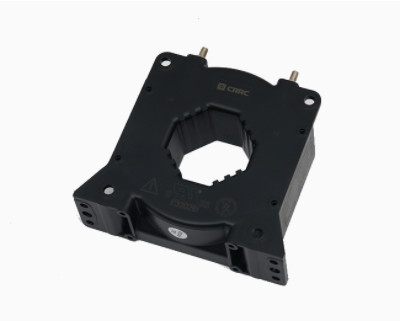

Electromagnetic Winding Coil Hall Current Sensor 50Hz 60Hz

MOQ : 100

Payment Terms : T/T

Delivery Time : 1-12 weeks

Packaging Details : Original packing

Usage : Current

Coil structure : winding

Coil number : Autotransformer

Phase : Depending

Output : Analog Sensor

Certification : ISO9001

Rated frequency : 50Hz or 60Hz

Type : Electromagnetic

Contact Now

NT108-S current sensor

Product Details

product manual

NACL-1000B-S1/SP1 magnetic balance Hall current sensor is suitable for accurate measurement of AC, DC and pulse current isolation. The primary side and the secondary side are completely insulated during measurement.

product advantages	Applications	Reference standard
High precision	AC Inverter AC	GB/T 25119-2010 EN50178 EN50155
Good linearity	Private server motor drive
Low temperature drift	Battery powered
Broadband	Converter/Inverter
Quick response	UPS/SVG

Main electrical parameters (@±IPN, TA = 25℃)
Rated measuring current IPN	1000A
Measuring range IPM	±1800A
Power supply voltage VC	DC±(15~24)×(1±10%)V
Current consumption IC (@±24V)	≤±35mA+ISN
Rated measurement output ISN	250mA
Turns ratio	1:4000
Load resistance RM	@±15V, ±1000A: 0Ω~30Ω(70℃) 0Ω~8Ω(85℃) @±15V, ±1500A: 0Ω~11Ω(70℃) 0Ω~9Ω(85℃) @±24V, ±1000A: 0Ω~57Ω(70℃) 10Ω~54Ω(85℃) @±24V, ±1800A: 0Ω~25Ω(70℃)
