1200A Pulse Current Transducer Response Time 2us

Product Categories

Xiamen Sincery Im.& Ex. Co., Ltd.

Contact Now

1200A Pulse Current Transducer Response Time 2us

MOQ : 100

Payment Terms : T/T

Delivery Time : 1-12 weeks

Packaging Details : Original packing

Maximum range : 800A~1200A

Sensitivity : G=2000/IP

Phase difference : -4

Magnetic zero offset : ±3

Electrical zero offset : ±4

Zero output error : -1 1

Contact Now

NACA.XXXQ3-S6 / VA Current Transducers

Product Details

product manual

NACA XXXQ3-S6/VA series triple current sensor is suitable for accurate measurement of AC, DC and pulse current isolation. The primary side and the secondary side are completely insulated during measurement.

Performance requirements
parameter name	symbol	unit	parameter			condition
parameter name	symbol	unit	Minimum	Typical value	Max	condition
Electrical parameters
Maximum range	IP	A	800A~1200A			For more details, please contact CRRC
Storage temperature	TS	°C	-40		125
voltage	UC	V	4.75	5	5.25
Output voltage (linear)	Vout	V	Vout=(Uc/5)·(V0+G·Ip)			@UC
Sensitivity	G	mV/A	2000/Ip			@UC=5V
Zero output	VO	V		2.5		@UC=5V
Current consumption	IC	mA		39	45	@ UC=5V,No load on Vout
Load Resistance	RL	KΩ	4.7	10
Load capacitance	CL	nF			5
Output internal resistance	ROUT	Ω	2	4	8	DC
Performance parameter
Zero output error	X0	%	-1		1	@TA=25℃,@UC=5V
Zero output error	X0	%	-1.5		1.5	@-40℃＜TA＜125℃,@UC=5V
Sensitivity error	εG	%		±1		@TA=25℃,@UC=5V
Sensitivity error	εG	%		±2		@-40℃＜TA＜125℃,@UC=5V
Electrical zero offset	FLY	mV		±4
Magnetic zero offset	FROM	mV		±3
Proportional error	.R	%		0.5
Linearity error	εL	%	-1		1	of full range
Response time	tr	μs		2
bandwidth	BW	kHz	40			@ -3dB
Phase difference	∆φ	°	-4			@DC to 1kHz

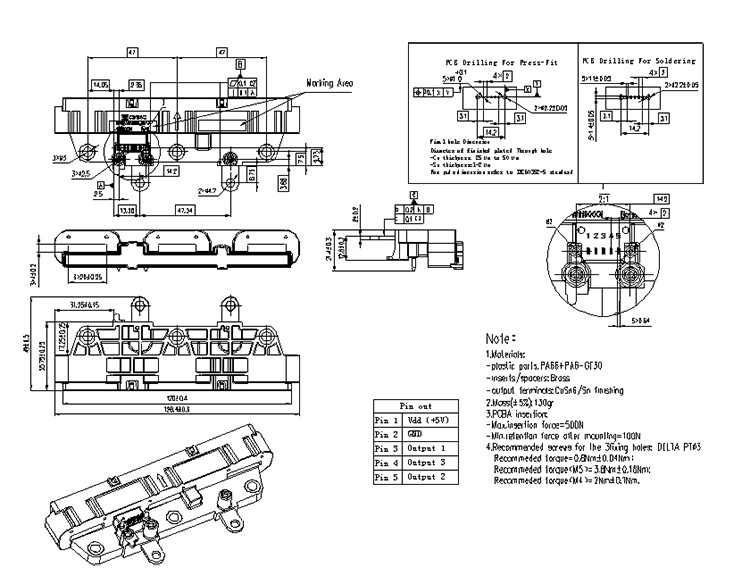

Dimensions

Series size

1200A Pulse Current Transducer Response Time 2us

Procurement information

1. Products can be customized according to your needs. You are welcome to provide physical samples or detailed process drawings to design, produce and process. 2. If there is no special requirement, our company will assign logistics distribution and deliver the goods to customer factory

3. Payment method: delivery after payment, which can be negotiated according to the specific order quantity.

4. The response time of the number of customers should not exceed 8 working hours.

5. Emergency on-site service time shall not exceed 24 hours.

6. Provide emergency support for customer's urgent shortage of spare parts.

Product Tags:

1200A Pulse Current Transducer

2us Response Pulse Current Transducer

1200A Pulse Current Transducer Response Time 2us Images
